UPI Solutions Overview

UPI is a popular mode of payment for customers which allows them to make payments directly through their bank accounts without entering debit card or net banking details. The bank account details are fetched through the VPA (Virtual Payment Address) provided by the customer. Paytm supports both UPI Intent and UPI Collect solutions to process payment via UPI.

UPI Intent

Paytm UPI Intent flow empowers the merchants to give flexibility to its users for making payments from any of the UPI PSP Apps available on their mobile. This feature enables you to give better payment experience to users who wish to make UPI payments.



Benefits of using UPI Intent

  • User need not remember his VPA for making UPI payment

  • Users do not need to switch between your merchant App, UPI PSP App and SMS

  • Flexibility for the user to use any UPI PSP App available on the device

  • Ease of making payment and better user experience results in a higher conversion rate

For more details related to the UPI Intent Integration, please visit the page UPI Intent Integration.

UPI InApp

UPI InApp flow is also known as UPI Push is one of the most advanced UPI flows through which you can display the UPI associated user Bank Account on your app itself, and once the user selects the same for making payment, Paytm App MPIN page opens up directly over your App. The flow is supported with both All-in-One SDK and Custom UI SDK integrations.



Benefits of using UPI InApp

  • Enhanced consumer experience by displaying UPI associated user bank accounts directly on your app

  • You get access to more than 100 million UPI associated bank accounts of Paytm users

  • Transaction time is 0.3x times lesser than that of UPI Intent flow as it involves only two-step payment

  • Success rate offered in this flow is 1.3x times better than UPI Intent transactions

The flow is available by default in All-in-One SDK solution. For integrating this flow in Custom UI SDK, please visit the page Custom UI Integration.



Demo of UPI InApp

UPI Collect

UPI Collect is the simple way of collecting the payment by prompting the user to enter the VPA address through which they intend to pay. User is notified through SMS and is prompted to make the payment on the relevant bank App. This flow is available as a payment mode in our different solution offerings such as Standard CheckoutJS CheckoutAll in One SDK, etc.



Benefits of using UPI Collect

  • UPI collect available as a payment mode with all our solution offerings

  • No separate integration required by the merchants for accepting payments by customers using UPI

Overview of Payment processing using UPI Collect Flow

  1. User selects the payment page as UPI on the checkout page.

  2. User enters the Virtual Payment Address (VPA) of their choice to make the payment and clicks the Pay button.

  3. Paytm sends a collect request to the user’s UPI App corresponding to the entered VPA.

  4. An SMS/Push notification is received by the user requesting them to complete the payment.

  5. Your app/website shows a wait screen which is polling to check payment status.

  6. User opens the UPI App with the order amount already filled and clicks Pay

  7. User enters the m-pin and approves the transaction.

  8. You receive the transaction status corresponding to the payment completed by the user.

  9. User goes back to your app/website payment page. You can show the successful status of payment on the checkout page.

  10. You show an order successful message to the user.

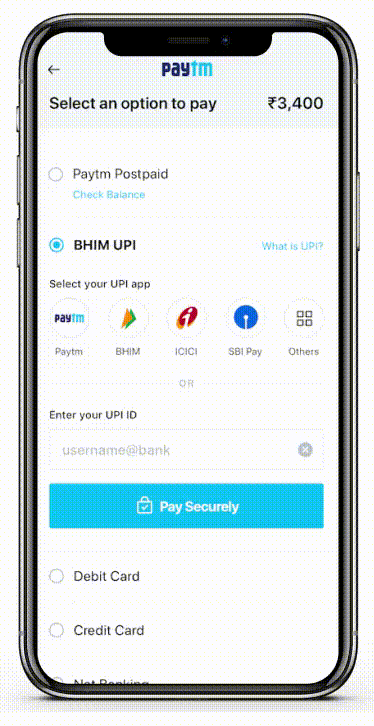

Demo of UPI Collect
